examples of application
anti slip mats for
Pallet Transport

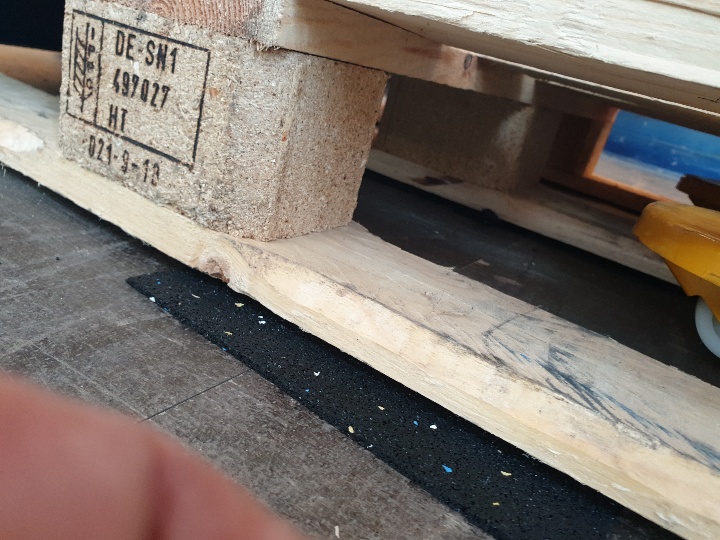

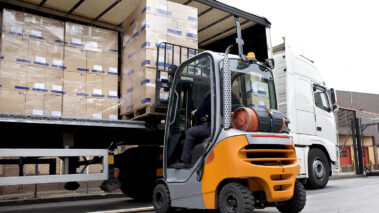

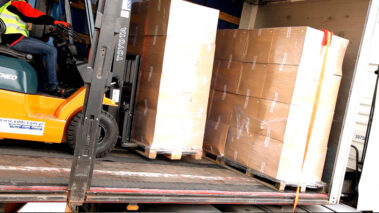

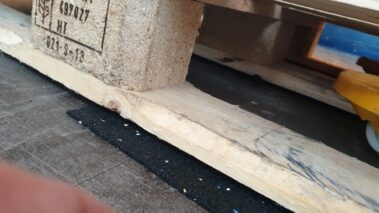

Placing mats under pallets or steel containers increases surface friction significantly, enhancing load stability and reducing the amount of tie-down equipment required.
anti slip mats for
Metal Coils

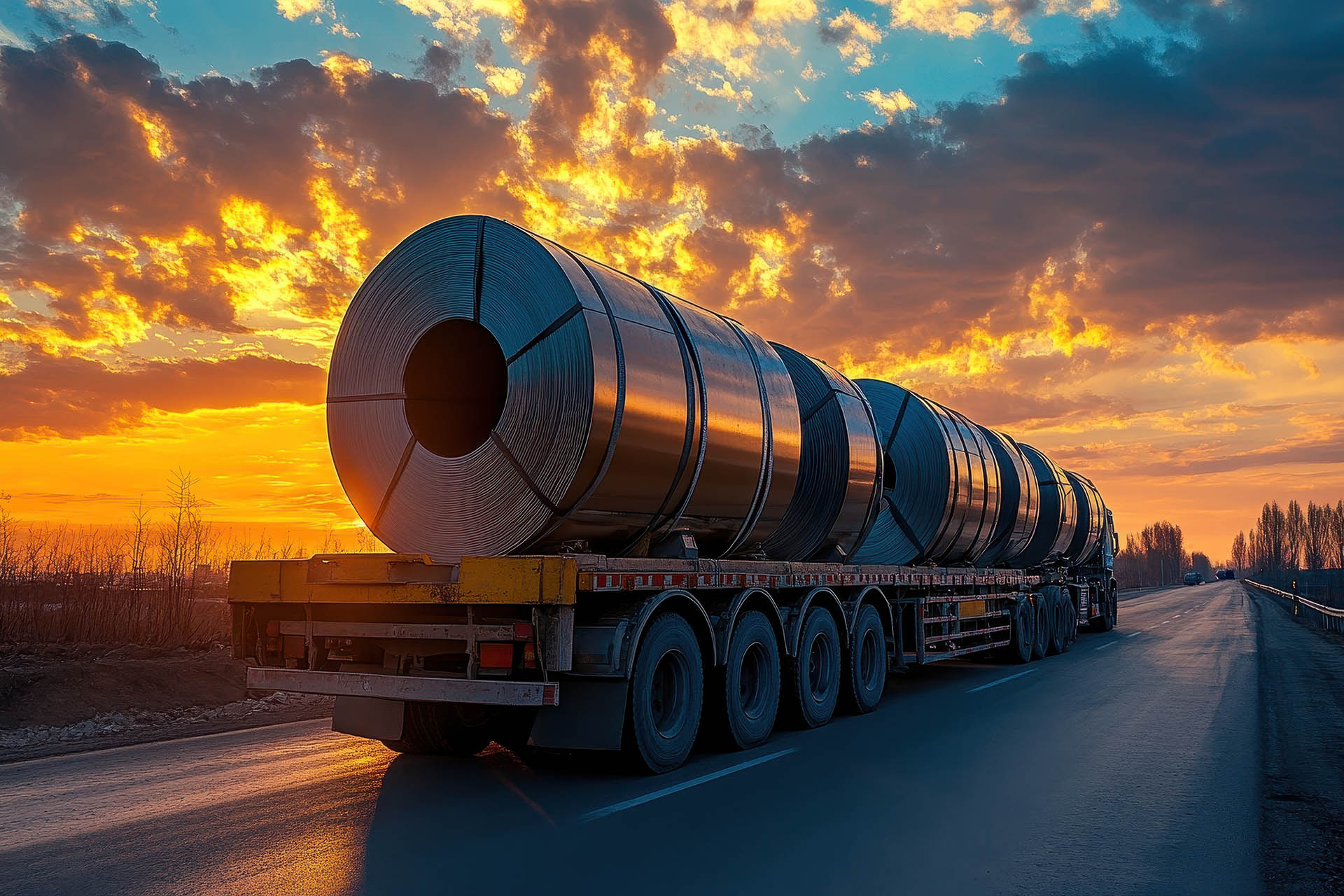

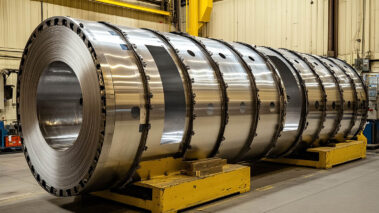

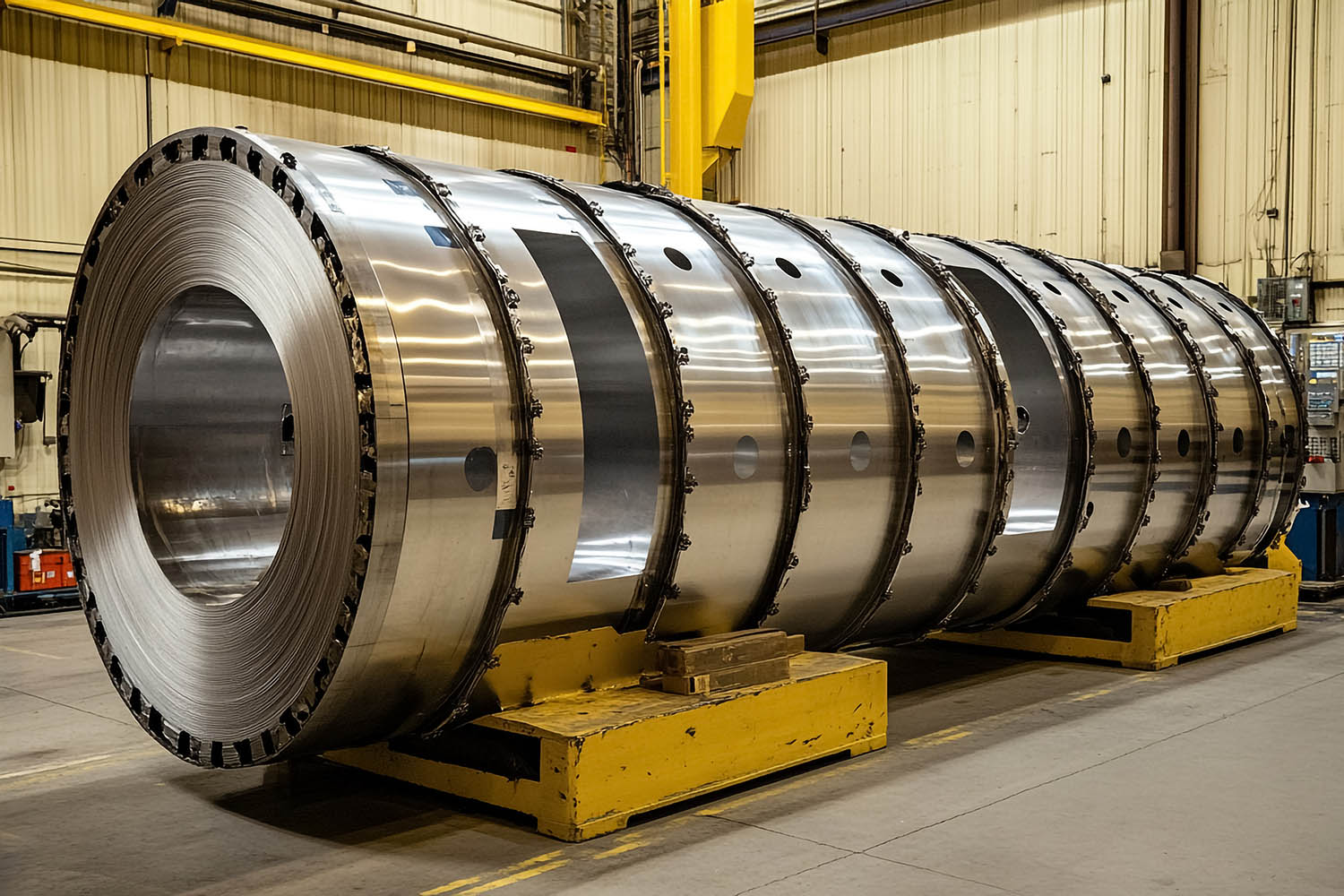

Use mats inside coil cradles to stop shifting and maintain the center of gravity—essential for the safe transport of heavy rolled metal.
anti slip mats for
Paper Rolls

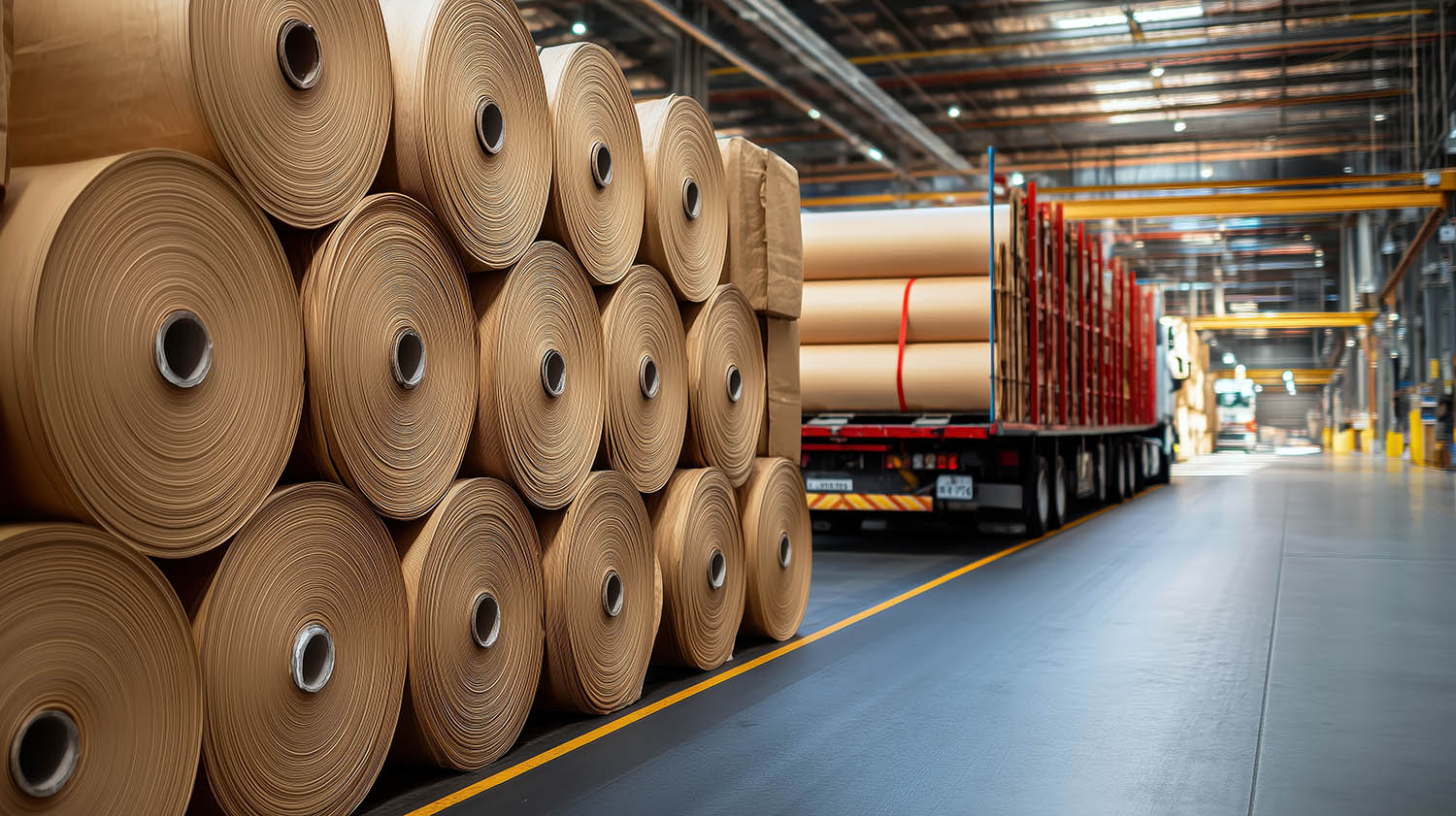

Prevent lateral movement of paper coils with mats placed below and between layers. Their shock-absorbing design offers additional support and security during braking and cornering.

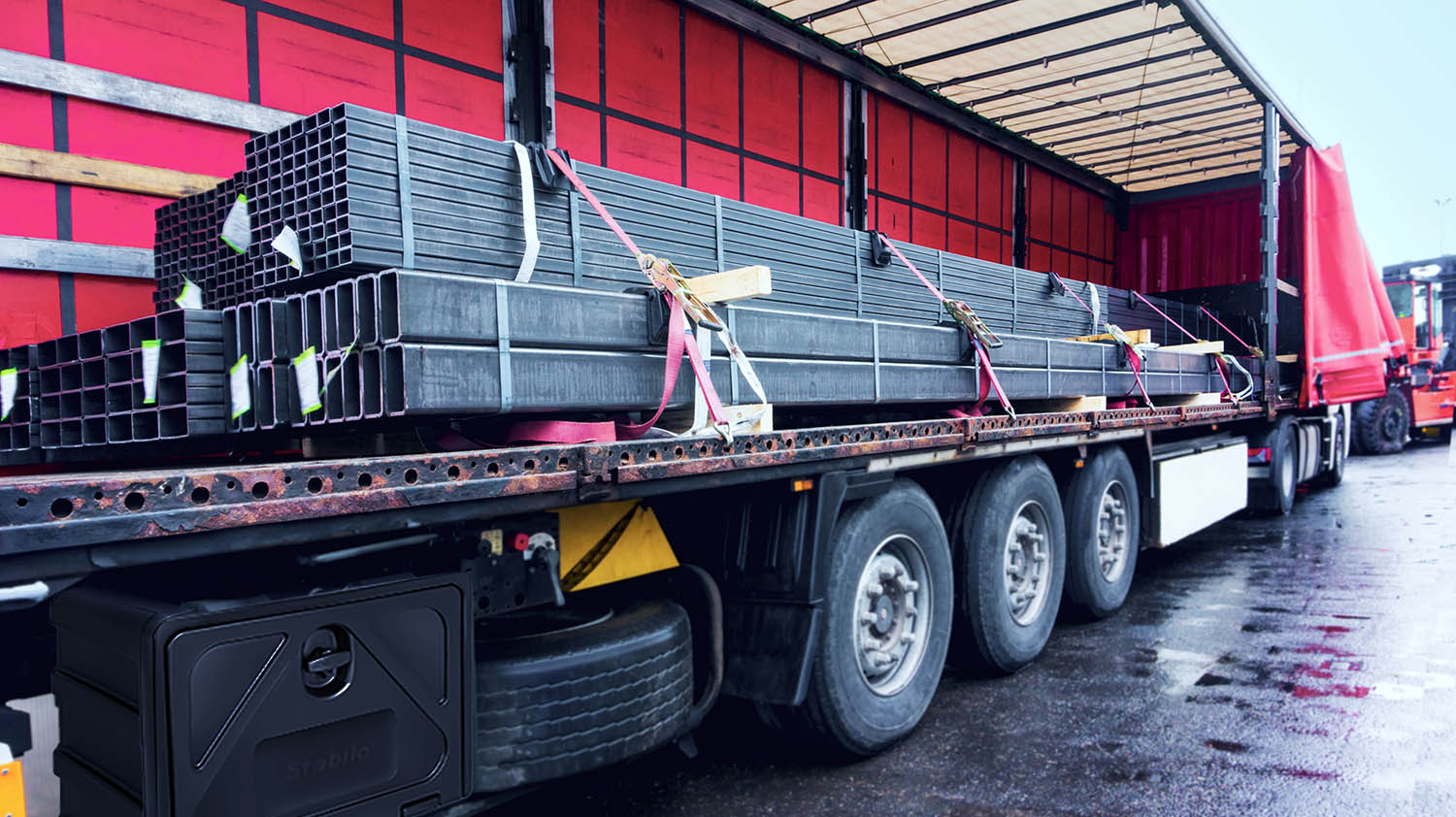

anti slip mats for
Pipes & Tubing

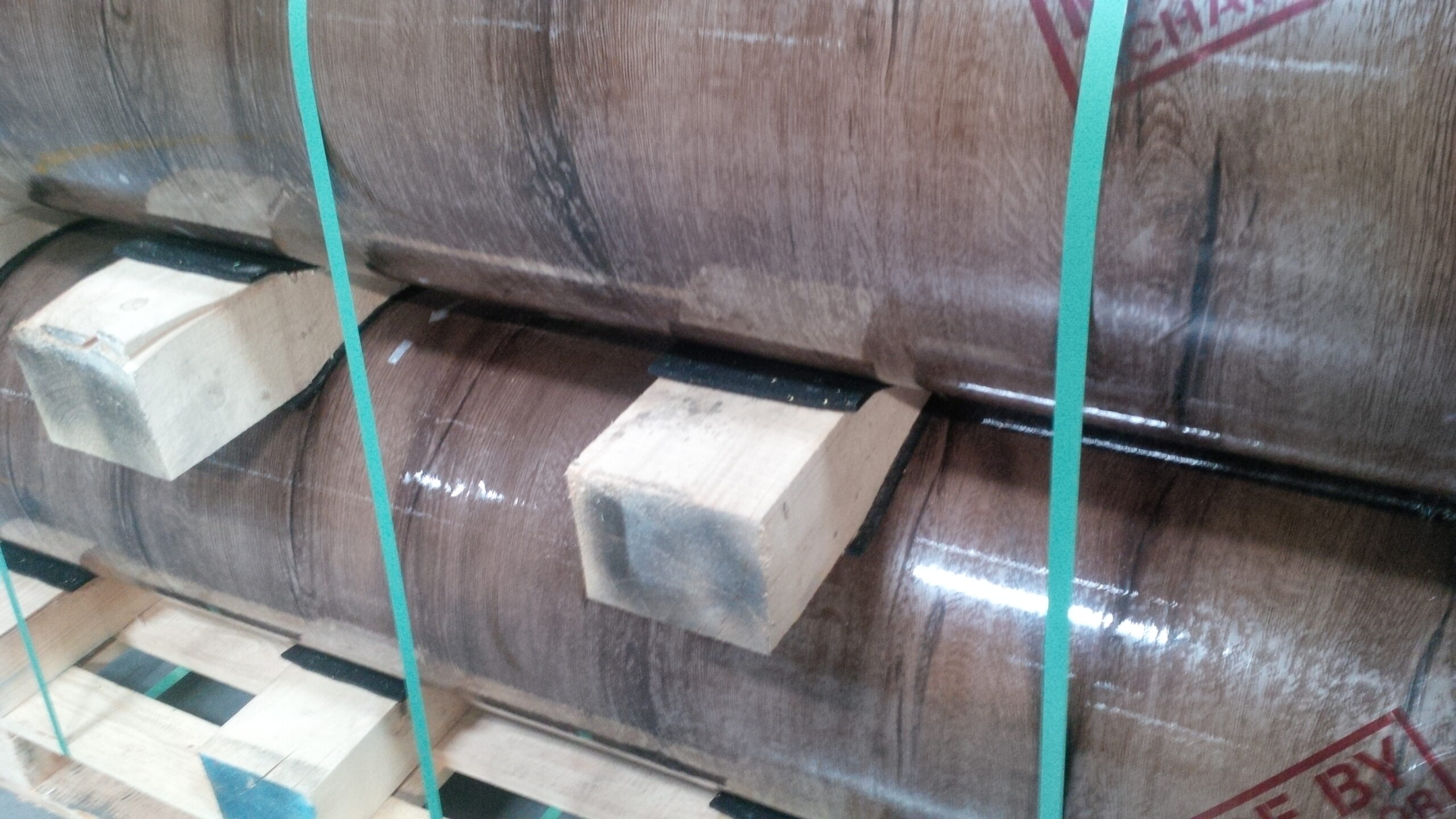

Ensure both longitudinal and lateral safety by placing mats securely underneath the pipe load and between the securing chocks for better stability.

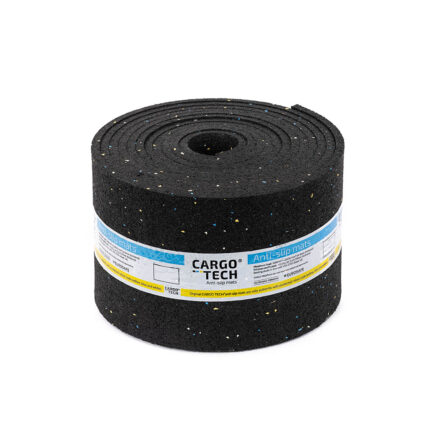

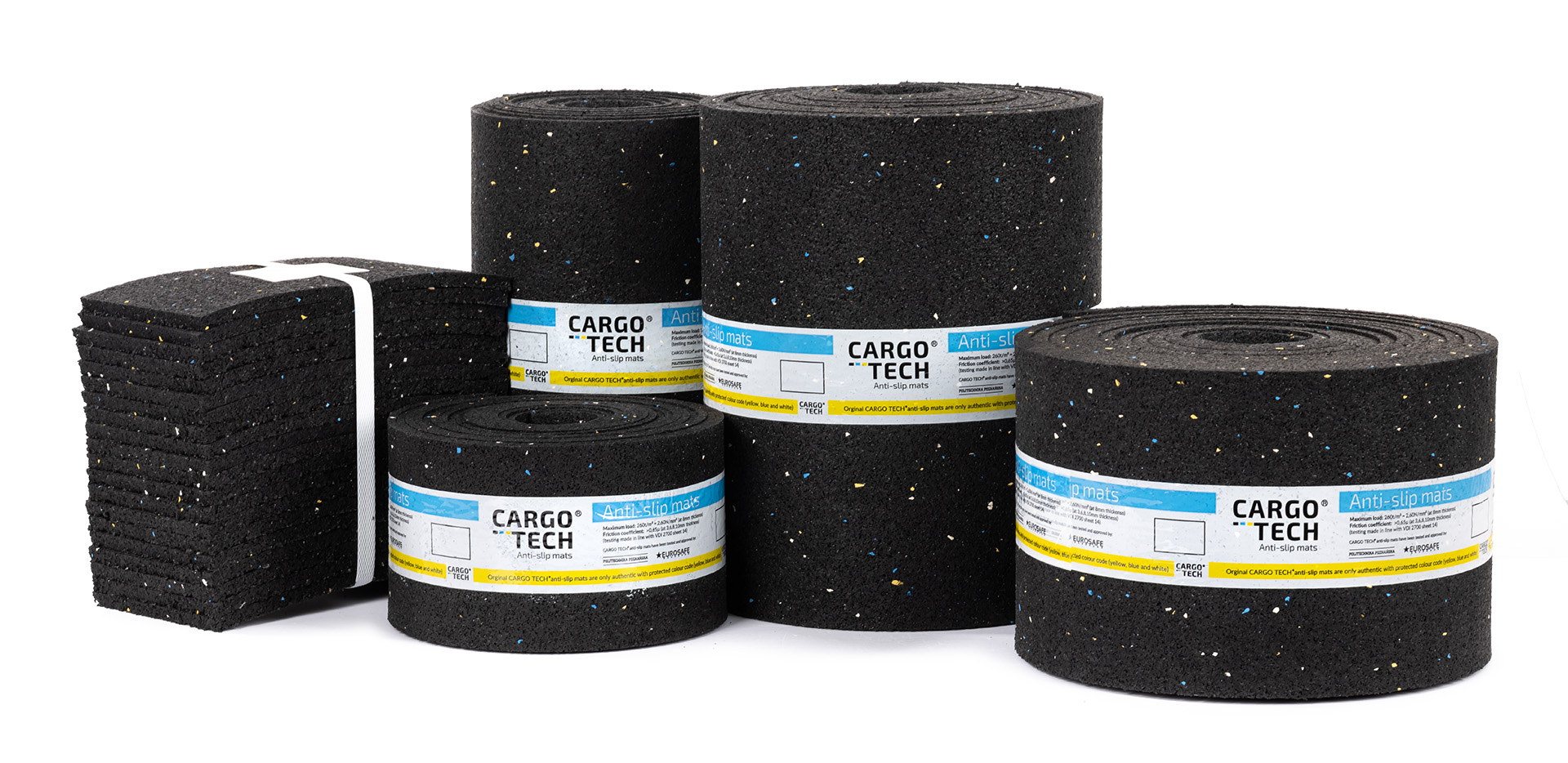

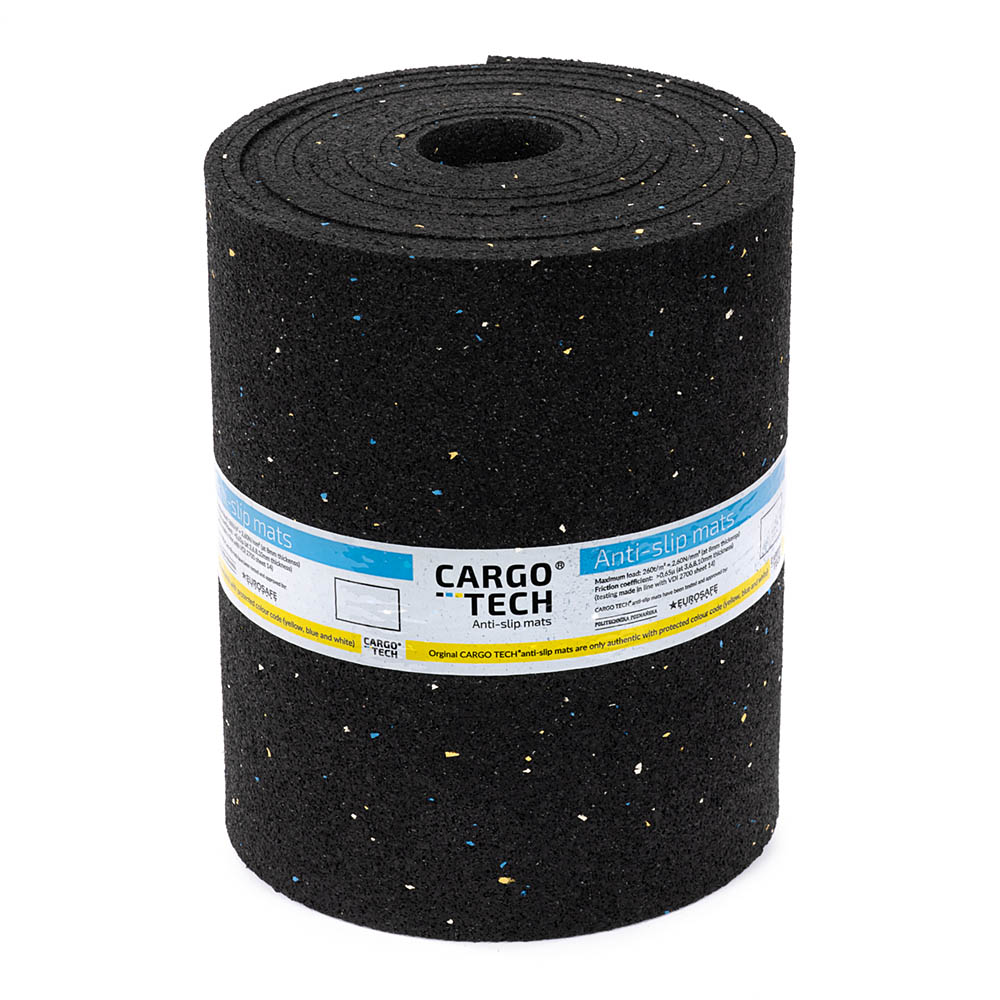

Cargo-Tech® anti slip mats
anti slip mats for reliable load securing

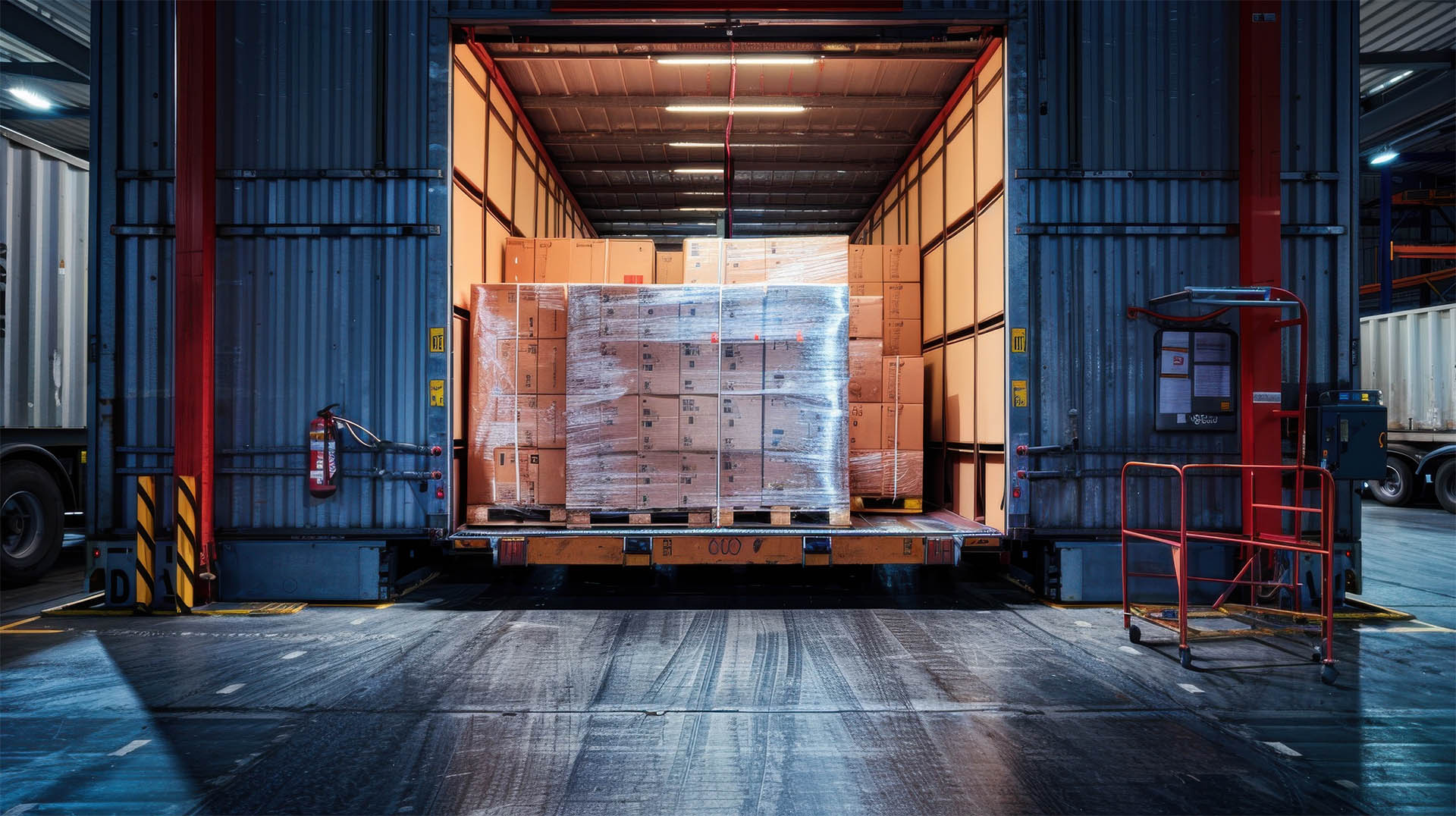

Our premium anti-slip mats are engineered to enhance transport safety by drastically minimizing load movement during transit. Thanks to their high coefficient of friction, they reduce the need for excessive lashing and tensioning force—saving time, resources, and wear on equipment. Designed for universal application, they provide strong grip on smooth loading areas, ensuring cargo remains firmly in place.
Product specification
key features CARGO TECH® anti slip mat
In tests conducted by personally certified experts from EURASAFE GmbH,
our anti-slip CARGO-TECH® mat has achieved kinetic friction coefficients of more than 0.7 µ. (at 8mm thickness).
According to VDI guideline 2700, part 15, the friction value 0.6 µ is usually required,
which means the safety-relevant properties of our product exceed the guideline requirements.

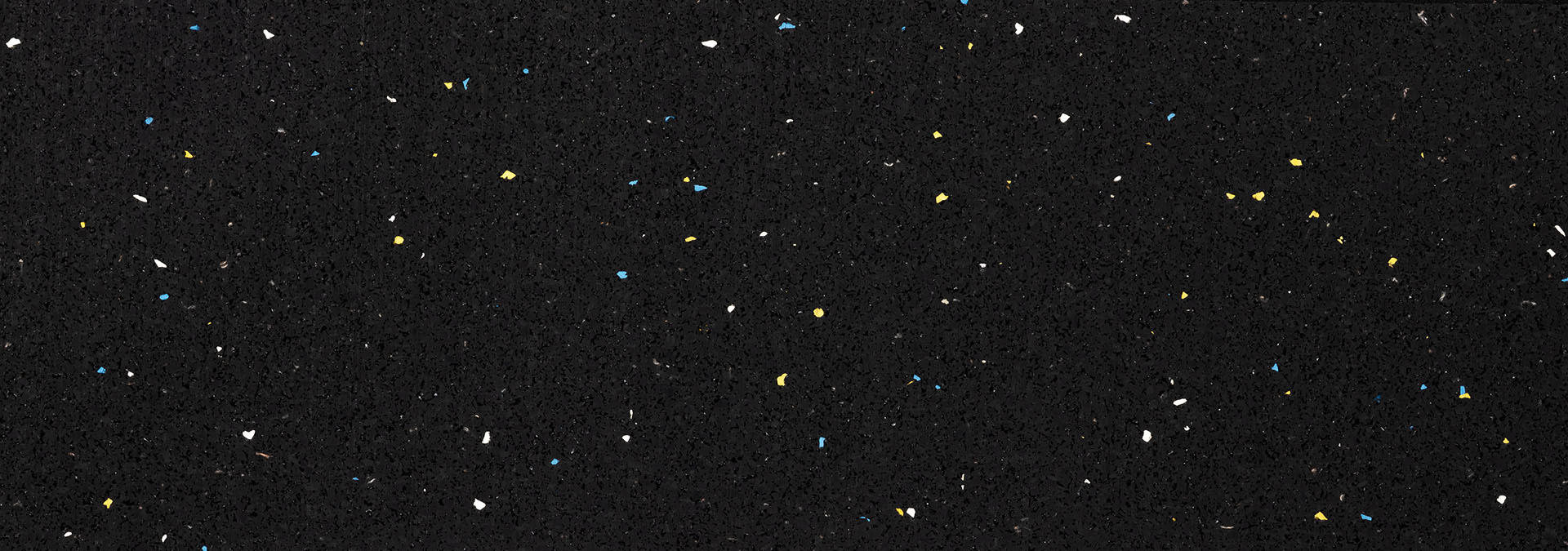

| Raw material / colour | Rubber granulate SBR/NBR bonded with polyurethane. Black with white, yellow and light blue EPDM particles (registered I.D. marking) |
| Density | 870kg/m³ (+/- 5%) |
| Maximum load | 260t/m² = 2.60N/mm² (at 8mm thickness) |
| Friction coefficient | >0.65µ (at 3, 4, 6, 8, 10mm thickness) – tested per VDI 2700 sheet 14 |
| Maximum load | 250t/m² = 2.50N/mm² (at 8mm thickness) |
| Tensile strength average | 0.60MPa [N/mm²] DIN EN ISO 1798 (at 3mm thickness) |
| Elongation at break average | 60% DIN EN ISO 1798 (at 3mm thickness) |
| Extreme temperature resistance | (–)40°C to (+)100°C |
| Available thickness | 2 – 12mm |
| Delivery form / max size | Rolls, sheets, cut-to-size formats on request Width: max 1,5m / Length: max 20,00m The tolerances in all measurements according to DIN7715, part5, class p3 |
| Tolerances | All measurements per DIN7715, part 5, class P3 |
| Discard status | Suitable for repeated use through to discard status v.2/23 |
The most popular sizes of anti-slip mats in load securement

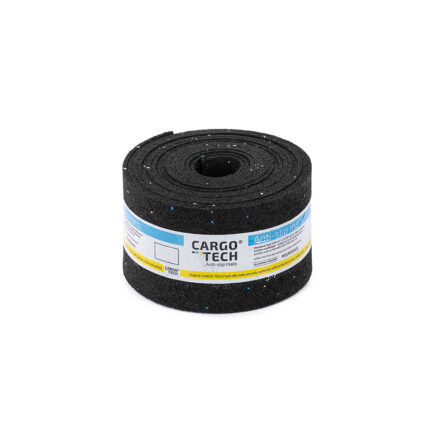

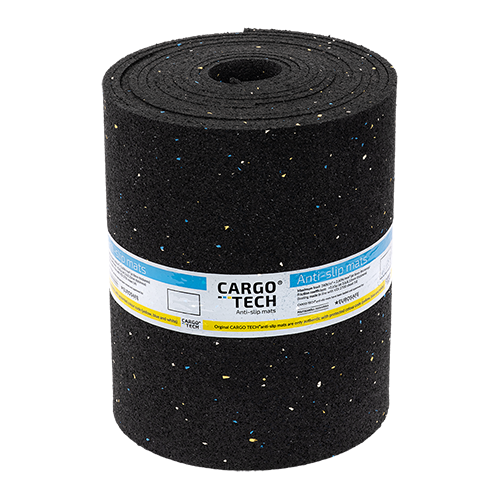

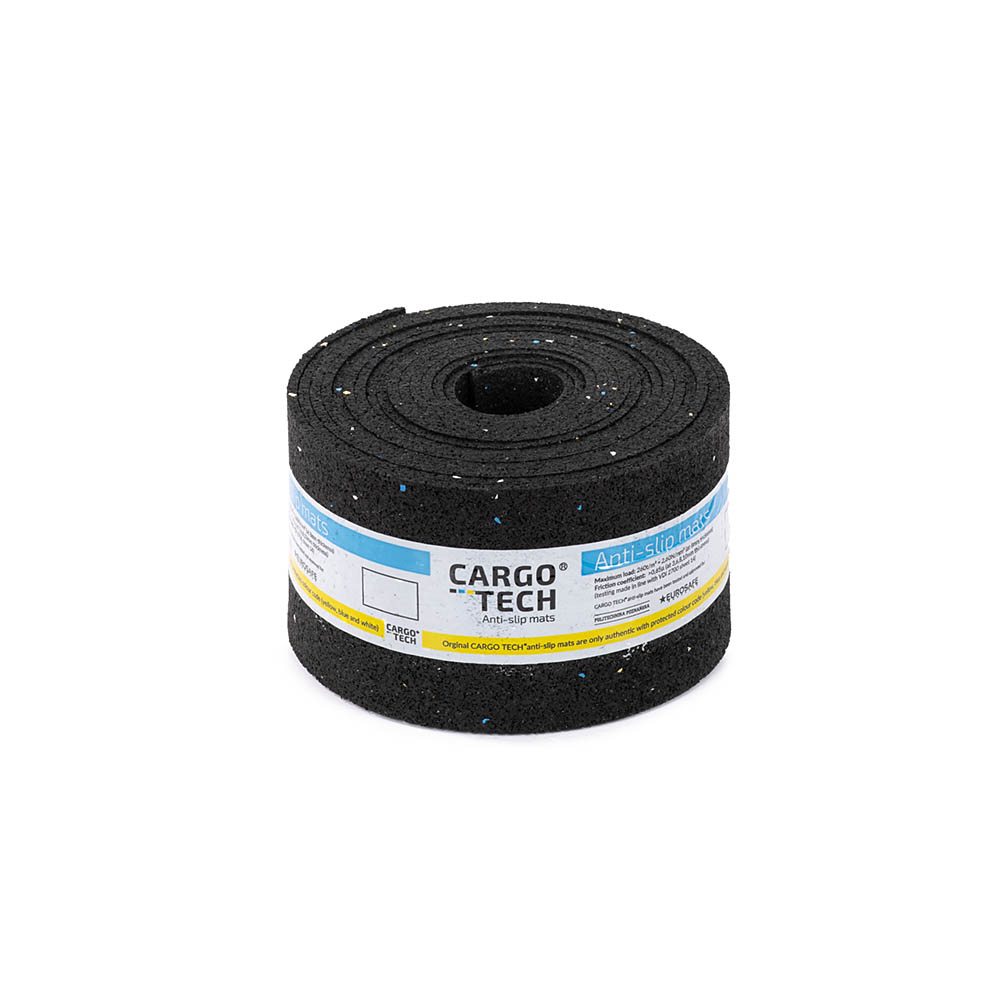

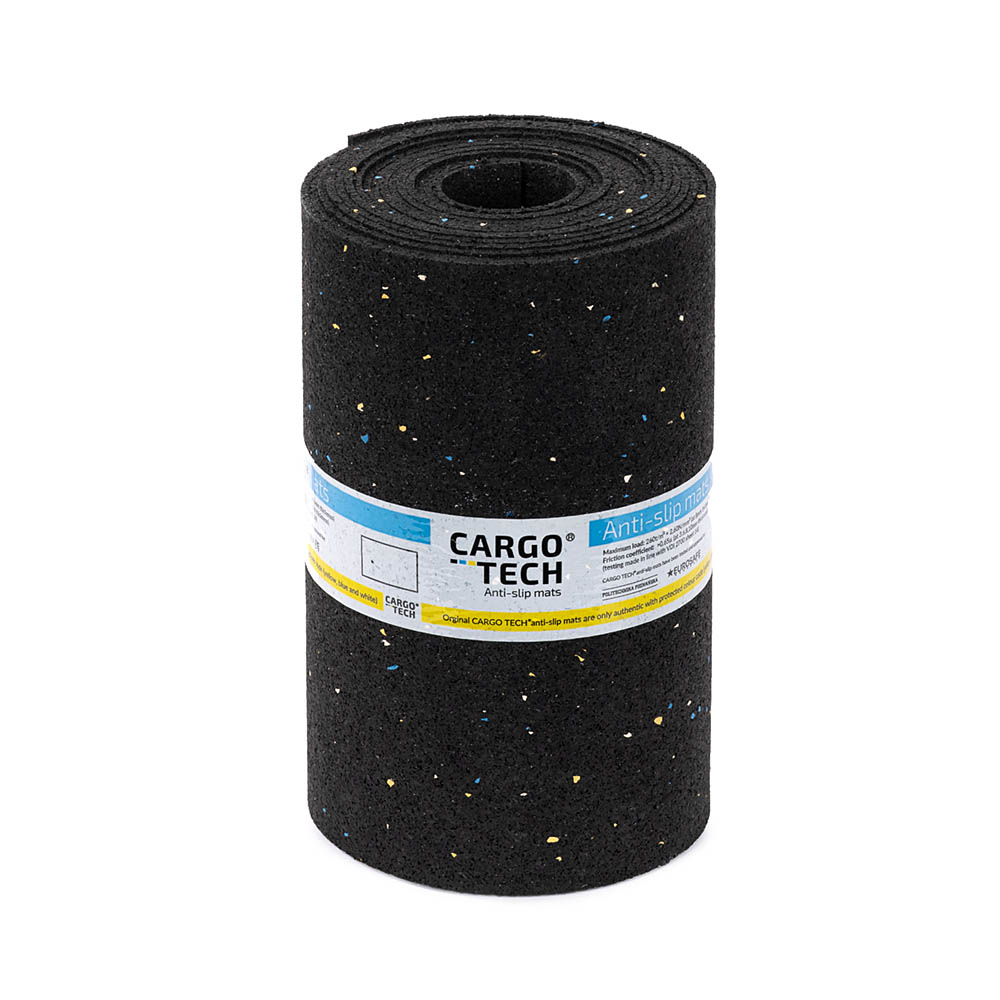

rolls
| Index | Size |
|---|---|
| CT 153136 | 3mm x 150mm x 13600mm |
| CT 125805 | 8mm x 125mm x 5000mm |
| CT 251003 | 3mm x 250mm x 10000mm |
| CT 250605 | 6mm x 250mm x 5000mm |
| CT 250805 | 8mm x 250mm x 5000mm |

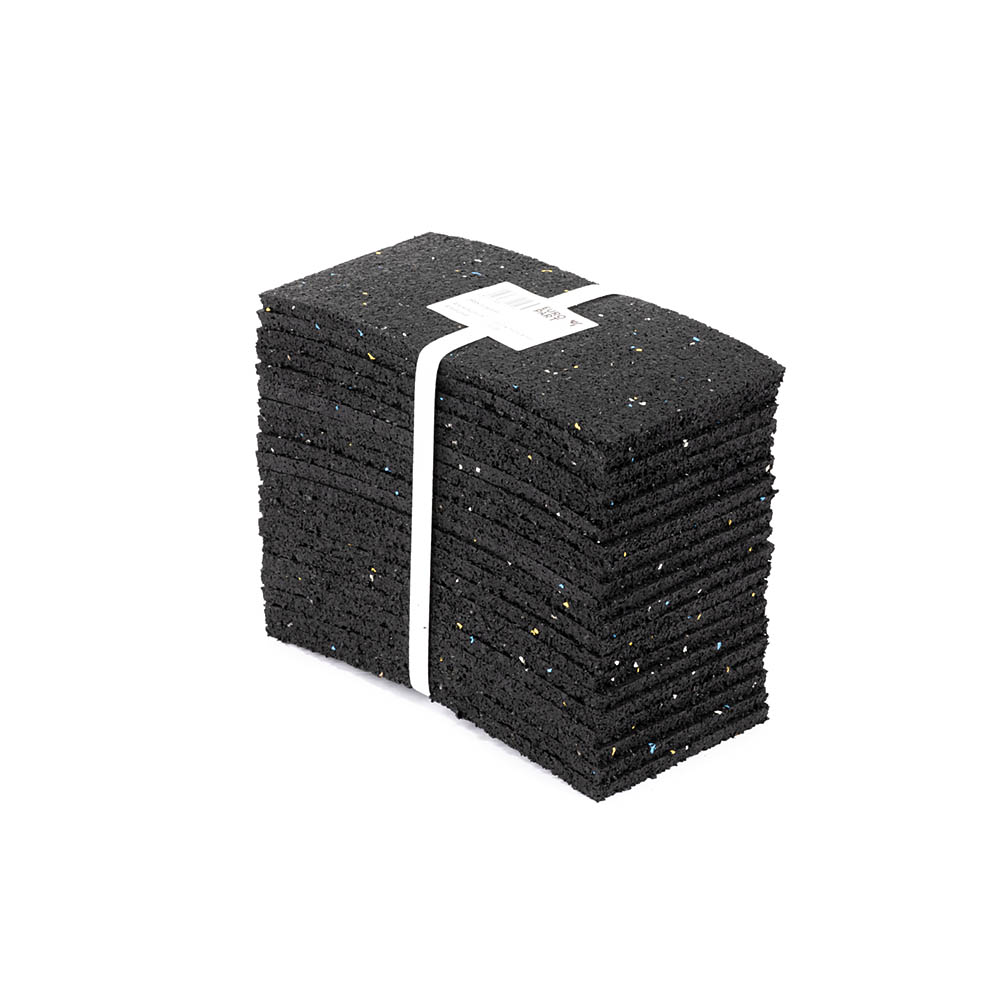

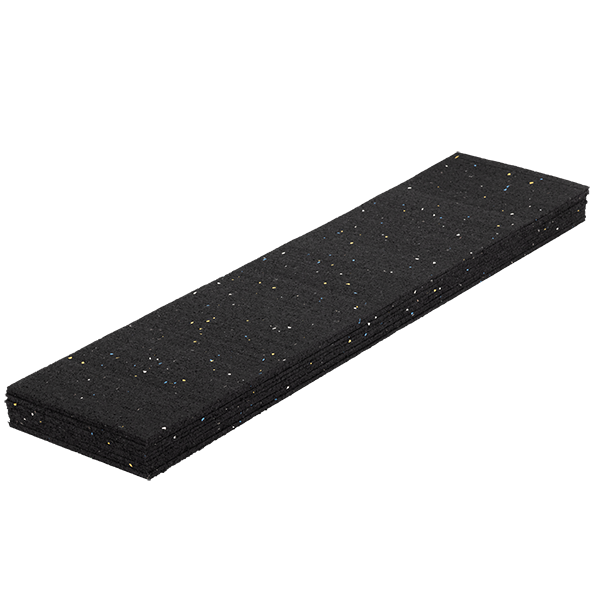

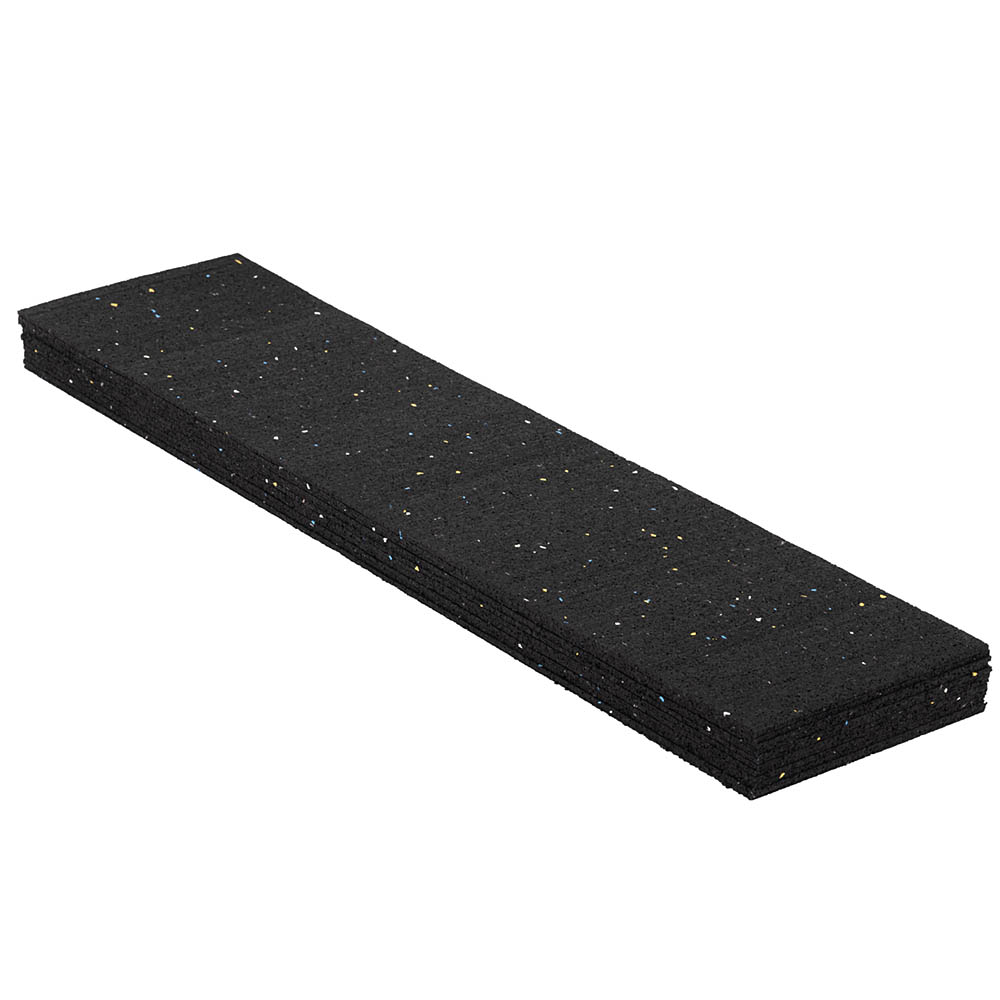

pads
| Index | Size |
|---|---|
| CT 151203 | 3mm x 150mm x 1200mm |
| CT 203010 | 10mm x 200mm x 300mm |
| CT 201500 | 3mm x 150mm x 200mm |
| CT 206008 | 8mm x 200mm x 600mm |
| CT 252008 | 8mm x 200mm x 250mm |
| CT 102008 | 8mm x 100mm x 200mm |
Download specification
Why use anti slip mats in transport?
Secure loads. Save time. Drive safer.

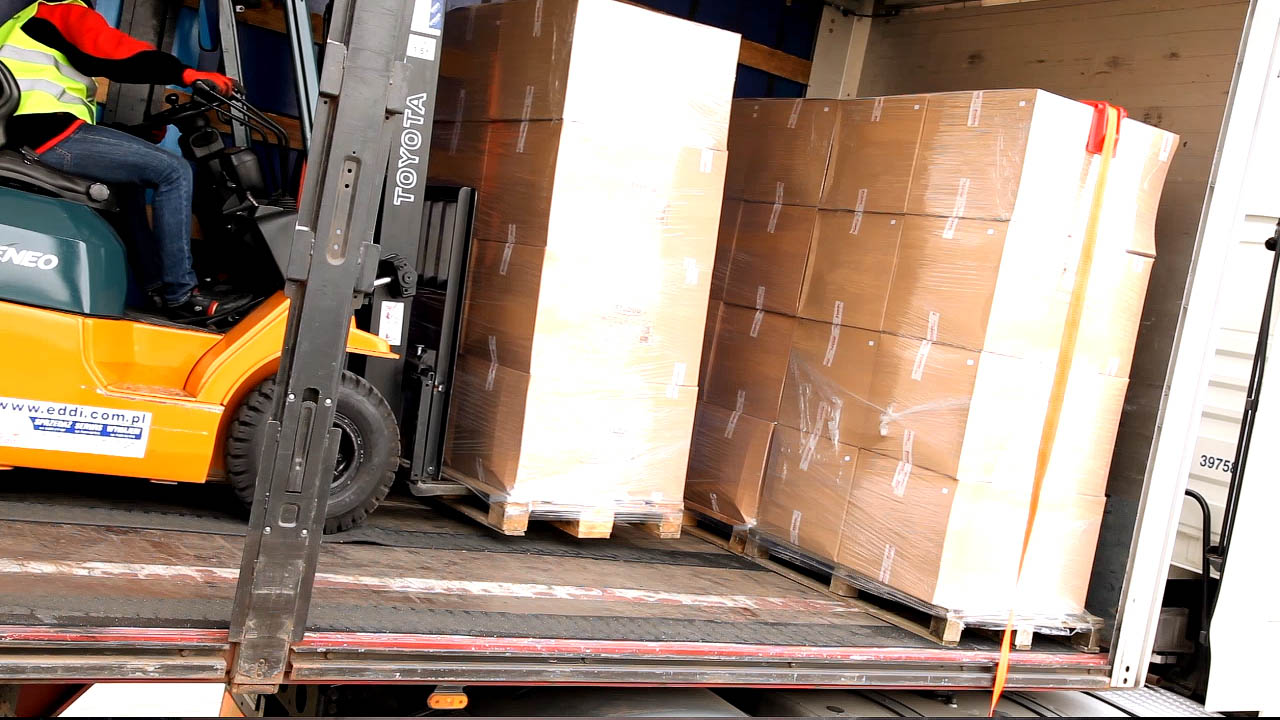

Enhanced Load Stability During Transit

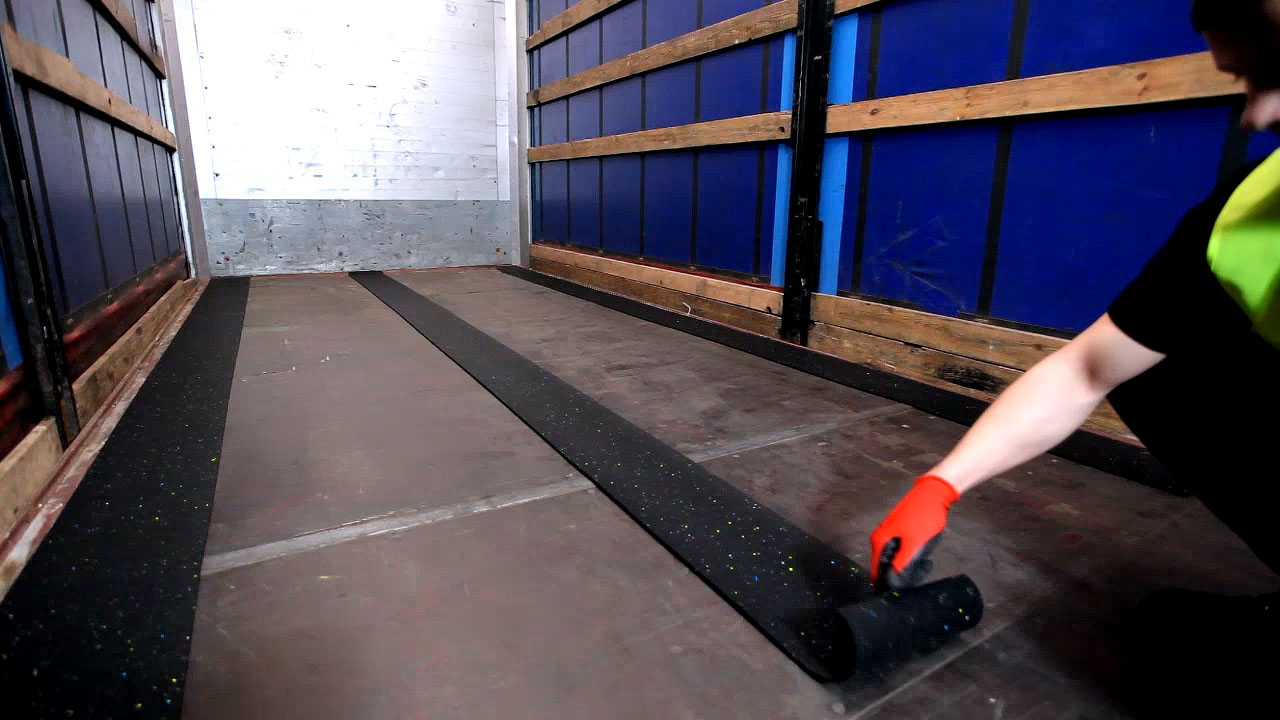

Anti-slip mats play a critical role in maintaining cargo stability during transportation of goods. By significantly increasing the friction between the load and the vehicle floor, these mats reduce the risk of slipping, shifting, or tilting—especially during sharp turns or sudden braking. This added grip minimizes movement and ensures the load arrives safely and securely.
Reduced Need for Lashing Straps
With high-friction anti-slip mats in place, the number of required lashing straps can be substantially reduced. In example: for a load of 1000 kg standing freely on the loading platform (chipboard floor, coefficient of sliding friction approx. µ 0.2) for a pre-tension force of 500 daN per lashing strap, 4 lashing straps are required when no anti-slip mats are used. The use of anti-slip mats doubles the coefficient of sliding friction to µ 0.6 and reduces the number of straps required to 2 (according to EN 12195-1).
Reusable, Durable & Cost-Effective
Made from highly resistant materials, anti-slip mats are built to withstand repeated use under heavy loads. Their durability ensures long service life, even in demanding logistics environments. When used correctly, they help reduce waste and offer an eco-friendly, cost-efficient solution to load securing.
High Surface Load Capacity & Friction Coefficient
Modern anti-slip mats are designed to support surface loads of up to 500 t/m², depending on the thickness and material. With friction coefficients of up to μ = 0.75, they offer exceptional grip, making them ideal for securing everything from light pallet shipments to heavy industrial coils or steel construction.
Legal Requirements & Risk of Fines
avoid costly penalties with proper load securing
Proper load securing isn’t just a best practice—it’s a legal obligation. National and international transport regulations (such as VDI 2700 or EN 12195-1) require that cargo be secured to prevent shifting or tipping during transit. Failing to meet these standards can result in costly fines, vehicle downtime, or even liability for accidents. Using certified anti-slip rubber mats helps you comply with legal requirements, reduce the need for excessive lashing, and avoid penalties during roadside inspections or audits.
You can find more information about the requirements for the safe transport of goods here:
balm.bund.de
High friction coefficient
Ensures excellent grip between cargo and vehicle floor, minimizing slippage.
Multiple uses
Designed for multiple uses without loss of performance, reducing waste and cost.
Load Capacity
Load Capacity. Handles high surface pressure — often up to 500 t/m² — suitable for heavy freight.
friction
high friction coefficient
multiple use
designed for multiple use
load capacity
suitable for heavy freight
durability
resistant to tearing, abrasion, and deformation
resistant
weather & chemical resistance
time-saving
Reduces the need for excessive lashing straps
Durability
Resistant to tearing, abrasion, and deformation even under tough conditions.
Weather & Chemical Resistance
Performs reliably in varying temperatures and exposure to moisture or oils.
Time-Saving
Reduces the need for excessive lashing straps, speeding up loading and unloading.
Cargo-Tech® rubber anti slip mats
are you looking for manufacturer of anti slip rubber mats for transport industry?
